Sungrow Batteries Explained

For a beginner, that can make everything blur together. This guide is here to simplify it. We will break down the main Sungrow battery families, explain what the model names mean, show which ones are current and which ones are legacy, and help you understand what actually matters before you buy.

The simple way to understand Sungrow batteries

The easiest way to make sense of Sungrow’s battery range is to stop looking at it as one big list. For most home buyers, the important battery families are:

Then there is MGL, which sits in a different part of the Sungrow ecosystem and is better thought of as a separate path rather than just another SBR or SBH alternative.

Any numbers that come after the three-letter prefix are relating to the size of the battery with one decimal place. E.g. SBR064 is a 6.4kWh battery. In saying that, the numbers don’t always perfectly align, but they are very close. E.g. a SBS050 is actually a 5.12kWh battery.

There are also older Sungrow batteries like SBR050 and SBP4K8, which still appear online and can easily confuse shoppers, even though they are not the main models most new buyers will be choosing today.

If you only remember one thing, remember this:

SBS is the compact simpler option,

SBR is the main modular home battery range,

SBH is the larger step-up range, and

The three numbers are the size of the battery.

Stackable vs Expandable

There is a bit of debate as to what “modular” truly means when talking about batteries. In the most simplest terms, it is understood as being able to easily interchange your current battery setup with more or less modules.

Most battery brands have achieved this by designing a stackable batteries. This is what people think when they think “modular”. However some will describe an “expandable” battery as modular as well.

Whilst it is technically true that an expandable battery is modular, it requires installation of entirely new battery and recommissioning the inverter. This is not exactly the ease that people associate with the word modular, but it is indeed still modular.

Sungrow models at a glance

Battery family	Modular	Size (kWh)	Best suited to
SBS	Expandable up to 4 units	5	Homeowners wanting a smaller and simpler starting point
SBR	Stackable from 2 to 8 units	3.2 (minimum of 2 units)	Most home battery buyers
SBH	Stackable from 2 to 8 units	5 (minimum of 2 units)	Larger homes, higher loads, some light commercial use
MGL	Expandable up to 16 units	6	Buyers looking at specific low-voltage Sungrow setups

Sungrow models in detail

SBS: The compact option

The SBS is literally a smaller and much slimmer physical unit than the SBR and SBH towers. The biggest difference is depth the SBS is 182 mm deep, while SBR is 330 mm deep and SBH is 350 mm deep. It is also narrower at 515 mm wide, versus 625 mm for SBR and 675 mm for SBH.

Sungrow positions it as a compact, wall- or floor-mountable system with horizontal or vertical expansion options that can be daisy-chained up to four units. The downside is it only comes in one 5kWh size and it not stackable like the other variants. So whilst an individual battery may be smaller, once you start expanding, it could actually take up more space.

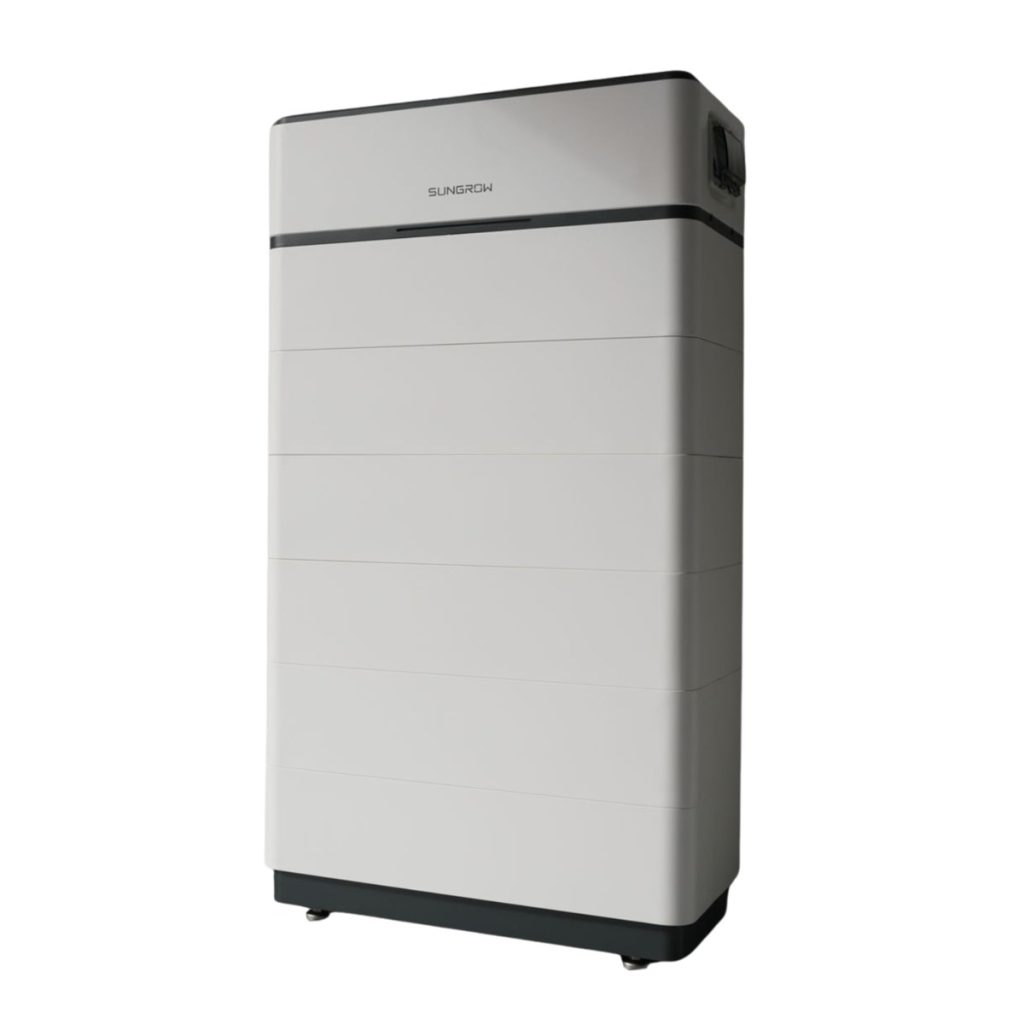

SBR: The flagship product

If there is one Sungrow battery family most homeowners should understand, it is SBR. This is the mainstream modular residential range, and it is the family most likely to appear in Australian comparisons, installer proposals, and homeowner discussions.

One unit of the battery is 3.2kWh but you will need a minimum of two if you are choosing this option. You can stack a maximum of eight of these batteries making the total size range 6.4kWh – 25.6kWh.

When these are being quoted to you, you will see a code such as SBR160. All this means is that it is 5 x 3.2kWh units. The number climbs as the amount of units goes up.

For buyers, that makes SBR easy to place in the market:

it is the mainstream Sungrow home battery
it is designed to be modular
it makes the most sense for people who want a system that can be sized to suit the home rather than bought as one fixed all-or-nothing package

In plain English, SBR is the part of Sungrow’s range that feels most like a normal modern home battery lineup.

SBH: The larger option

The SBH range is best thought of as the more powerful branch of Sungrow’s residential battery lineup. It is essentially the same as the SBR, but bigger.

Just like SBR, the family uses stepped model numbers, but the base unit is 5kWh, minimum of two unit and a maximum of eight units, giving it a total size range of 10 – 40kWh.

This is where Sungrow starts to overlap more comfortably with larger properties, bigger backup expectations, and some small business use cases. That can make SBH attractive, but it is often much more than the average residence needs.

MGL: The low voltage solution

MGL is better understood as a different Sungrow battery path, with a different voltage architecture and a different inverter ecosystem around it. MGL is probably not the first battery family to focus on, as it likely does not fit the requirements of the average household.

Where MGL will be beneficial is for households looking to prioritise energy storage capacity as opposed to instantaneous power.

In other words, ask yourself, what would you choose, if you’d had to pick between

a. wanting your battery to last a long time in an outage or
b. wanting to run heavy household loads

If your answer is A, the MGL is a better solution for you as it will allow you to go up to a 96kWh battery which is not possible with any of the other Sungrow lineup. Even if the hardware allowed for it, expanding to large amount with high voltage variants becomes a complex task, prone to more problems, which is why the low voltage solution is suited for it.

A note on compatibility and warranty

For the current AU high-voltage residential generation, Sungrow’s October 2024 HV battery warranty covers SBR and SBH with a 10-year product warranty and a 10-year performance warranty to 70% of initial capacity. The document is unusually favourable for daily self-consumption and backup use, because those scenarios are treated as unlimited-cycle applications; other applications are controlled through cumulative discharge throughput limits instead.

Older Sungrow battery warranties were less generous. The 2019 SBP4K8 document gave a 5-year product warranty, with a separate 10-year performance warranty to 70% capacity capped at 4,000 cycles. It also framed high-temperature and environmental compliance more tightly than the current SBR/SBH HV warranty does.

What about Sungrow batteries for businesses?

Sungrow also has larger energy storage products for commercial and utility use, but those sit in a different category from the home batteries most readers will be researching.

That is why it usually makes more sense to keep the business and utility systems separate from the residential conversation.

If you are a homeowner, the names that matter most are still:

If you are researching storage for a commercial property, Sungrow’s larger business and utility systems are worth looking at separately, but they should not be lumped into the same mental bucket as home batteries.

So, which Sungrow battery range is easiest to understand?

If you are trying to make the Sungrow range feel simple, here is the cleanest summary:

SBS is the compact option
SBR is the main modular home battery range
SBH is the larger and more powerful step-up range
MGL is a separate low-voltage branch

That is really the key to the whole brand.

Once you separate the current residential families from the older legacy products, the Sungrow lineup becomes much easier to understand.
